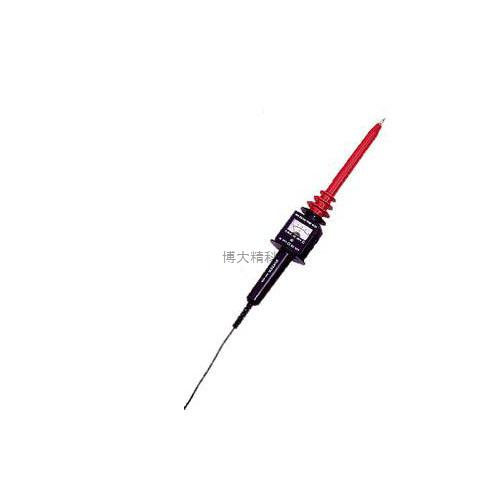

產品名稱：HVP-40M高壓探棒
技術參數：
DC 40KV CAT II Pollution 2
 600M Impedance
 25KV ∮ 2%, 40KV ∮ 3%
 T.C. 200 ppm/oC
 Positive Polarity only.
 Resolution 1KV
 Need not power.
 CE, TUV GS, UL, CUL, IEC1010

 DC 40KV CAT II Pollution 2
 600M Impedance
 25KV ∮ 2%, 40KV ∮ 3%
 T.C. 200 ppm/oC
 Positive Polarity only.
 Resolution 1KV
 Need not power.
 CE, TUV GS, UL, CUL, IEC1010

SPECIFICATIONS ( 20 ∮ 5, RH < 80% )
! WARNING !
?Before taking any measurements, first connect the alligator clip of this probe to earth ground and make sure connection is electrically good.
Input impedance:600M
Maximum operation voltage:40KV DC , CAT II , Pollution 2
Polarity:Positive only
Display:Analog indicate
Accuracy:Factory calibrater 25KV ∮ 2%
?????????FULL scale 40KV ∮ 3 %
Temperature Coefficient:∝ 200ppm / 
Maximum loading Current:∝ 70A
Maximum loading power:∝ 3 watt
Voltage Range:40KV / 1 Range
Voltage resolution:1KV
Power source:Need not power
Operating temperature:0  ~ + 50 
Storage temperature:- 20  ~ + 70 
Ground lead length:90cm ( 35 " )
Dimensions:420 L x 80
Weight :360g
