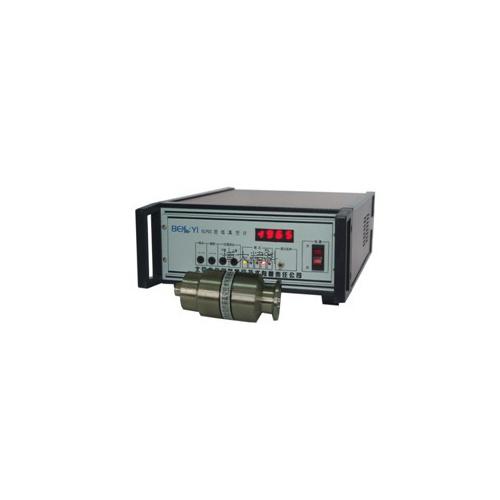

產品名稱：ZDF－2AⅡ數顯復合真空計
產品特點：
Adopts dual-routesZJ-53B(or ZJ-54D) thermocouple gauge and ZJ-2 ionization gauge to measure vacuum degree.The measuring range is 2.7×102Pa～1.0×10-5Pa。ZDF-2AⅡ compound vacuum gauge have thermocouple I to measure system forward stage vacuum degree. Thermocouple 2 and ionization measure pressure in vacuum chamber at the same time. Thermocouple 2 control ionization filament open and close and protect ionization gauge effectively. It can be aditionally equipped RS232/RS485 serial communication port,bound-setting relay control output,analogue standard signal output according to user’s demand to realize automation for industrial control.
Feature：
l        Wide measuring range,can measure continuously gas and steam full pressure.
l        Adopts short thread stablility thermocouple gauge,rapid reaction,long service life,strong pollution resistance,good consistency,common gauge in low vacuum.
l        Beautiful outline,complete function,easy operation,accurate measuring degree and continuously ,stable, reliable and durable.
Application：
l        Measure vacuum rough pumping system pressure.
l        Monitor pressure of kinds of vacuum pumping system.
l        Vacuum equipment and technics program control.
l        Measure pressure of vacuum system in laboratory and workshop

技術參數：
測量范圍 熱偶：2.7×102Pa～1.0×10-1Pa
   電離：1.0×10-1Pa～1.0×10-5Pa
測定點 熱偶規2路、電離規1路
測量精度 ±30%  熱偶部分：（ 2.7×102Pa～1.0×10-1Pa）
±5%  離子流放大器（1.0×10-1Pa～1.0×10-5Pa）
壓力顯示 指數位：1位   系數位：2位
例如： 前面板顯示1.0 E-1 Pa 表示真空度讀數為1.0×10-1Pa
設定點 四組或八路繼電器輸出接點。繼電器控制能力：AC220V/3A
設定點的設定值具有掉電保護功能，且可以隨時修改。（選用）
輸出信號 0～10V或4～20mA，分段線性化輸出。（選用）
通訊接口 采用RS232或RS485通訊接口，并可進行遠距離數據傳輸。（選用）
使用溫度范圍 5℃～35℃
電源 AC220V ±10%  50HZ ±1HZ
A型：
面板尺寸 119×440(mm) （徑深300mm）-臺式
122×480(mm) -裝架式
開孔尺寸 120×441(mm)（徑深300mm）
重量 7.5Kg

選購件：ZJ-54D金屬規（φ15.5mm接口或KF-16法蘭接口），ZJ-2 裸規（CF-35法蘭接口）。
規管纜線：可訂制加長纜線5米至100米以內。
